| PA15H 15英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|

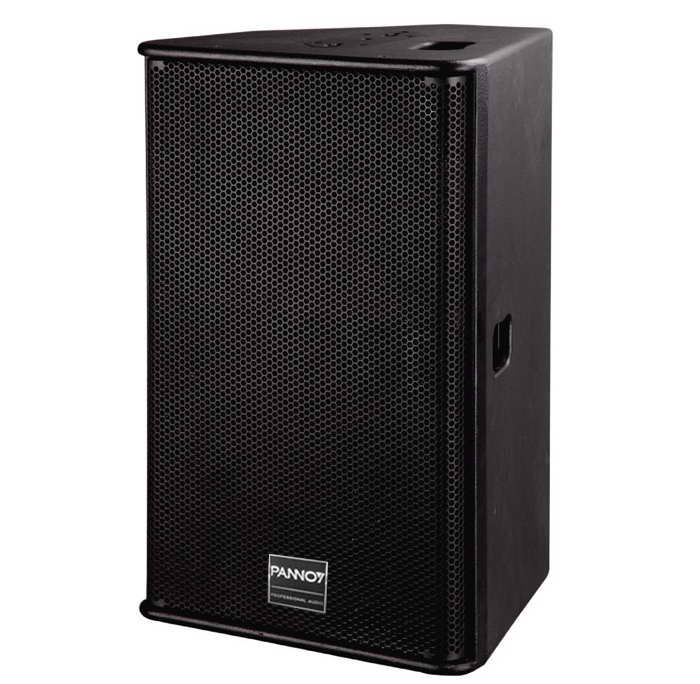

PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA15H is a two-way, full range loudspeaker system. It features a high efficient 15”woofers with 4 inch (100mm) voice coil and one 3” compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, auditoriums, outdoor performance, stadia and arenas, etc.
|
|||
| 产品参数
|
|||
|
Model: PA15H

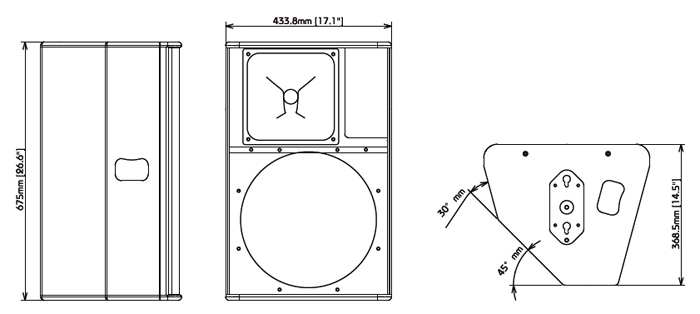

Type: 15 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 700W/1400W Nominal Impedance: 8Ω Frequency Response: 48Hz-19kHz(±3dB) Sensitivity (1W/1M): 99dB Maximum SPL(1M): 129dB Coverage Patterns(H×V): 90°x50° LF Section: 15" (381mm) woofer, 4" (100mm) voice coil HF Section: 3"compression driver Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 434x369x675mm Packing Size(WxDxH): 505x430x750mm Net Weight: 32Kg Gross Weight: 35Kg |
|||
| 后面板 |
|||
 |
|||
|
