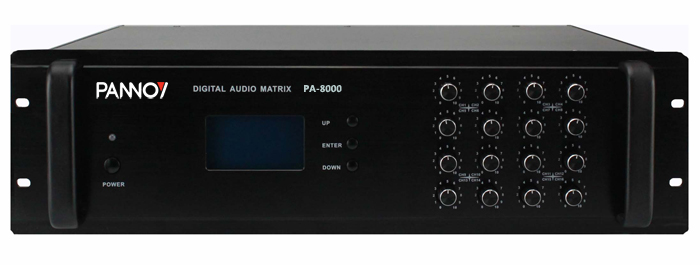

PA-8000 16X16音频矩阵
|
|
产品描述 | ||||||||||||||||||||||||||||||||||||
The PA-8000 digital audio matrix & paging controller is an ideal choice for setting up a multifunctional public address system with multi-audio source and multi-zone projects. It can realize BGM, announcement, zone paging, emergency alarm and program scheduled functions when working with related equipments.
The audio matrix controller with 16 channel inputs & 16 zone outputs, can extend to 128 zone outputs by cascading 8pcs units,1 master controller and 7 units slave controllers. With 2 EMC inputs and 5 Remote MIC inputs, they have input priority.
And typical applications are schools, offices, hotels, hospital, shopping malls and sport venues etc.
Features:
●16 channel inputs&16 channel
outputs
●Each channel has independent volume
control knob
●Operation
button with LCD display in English menu
●Input
priority for zone paging and emergency alarm
●Can
paging all zones, group zones, and individual zone by paging microphone
●Can extend to 128 zone outputs by cascading 8pcs units ●Unit can be turned on by activation short circuit signal for emergency paging |
||||||||||||||||||||||||||||||||||||
产品参数 | ||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||

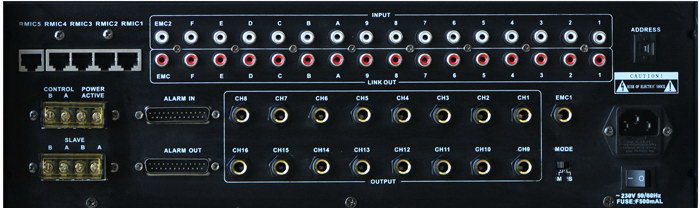

后面板 | ||||||||||||||||||||||||||||||||||||
|
