| PA08 8英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|

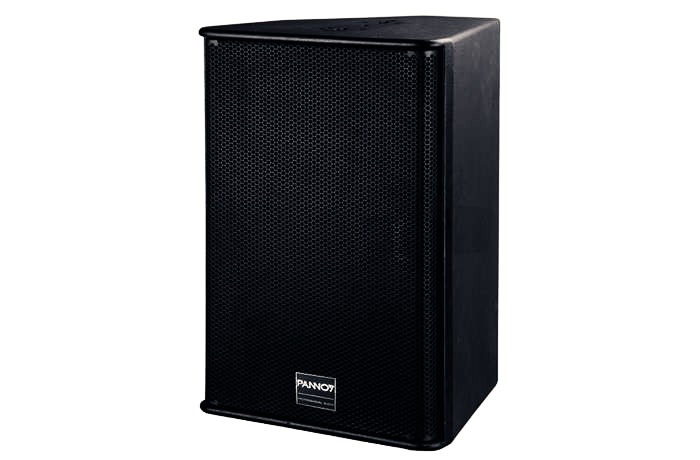

PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA08 is a two-way, full range loudspeaker system. It features one high efficient 8”woofer and one 1.4＂compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc.
|
|||
| 产品参数
|
|||
|
Model: PA08

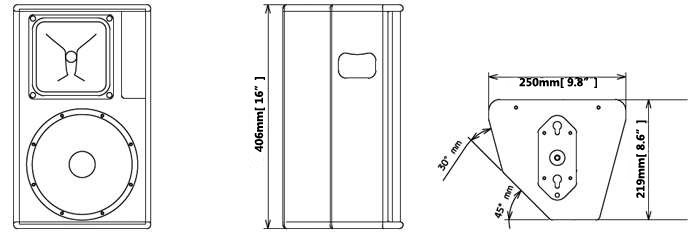

Type: 8 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 200W/400W Nominal Impedance: 8Ω Frequency Response: 65Hz-20kHz(±3dB) Sensitivity (1W/1M): 95dB Maximum SPL(1M): 120dB Coverage Patterns(H×V): 90°x50° LF Section: 8" (204mm) woofer, 2" (50mm) voice coil HF Section: 1.4"compression driver Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 250x219x406mm Packing Size(WxDxH): 310x280x480mm Net Weight: 11Kg Gross Weight: 13Kg |
|||
| 后面板 |
|||
 |
|||
|
