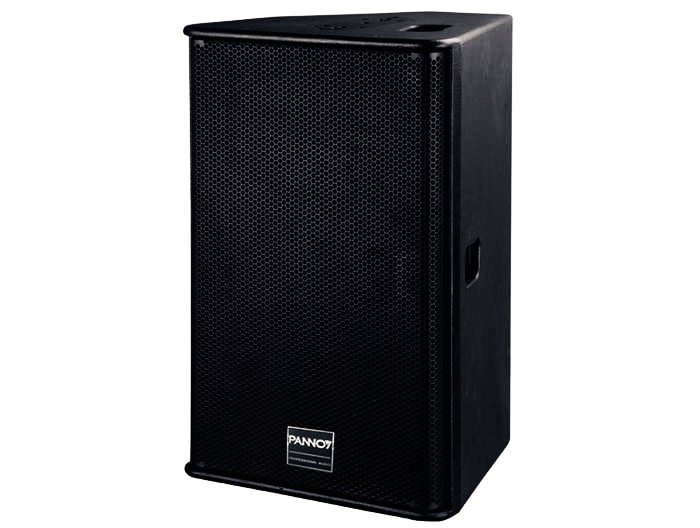

| PA10 10英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|
PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA10 is a two-way, full range loudspeaker system. It features one high efficient 10”woofer and one 1.75”compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, etc.
|
|||
| 产品参数
|
|||
|
Model: PA10

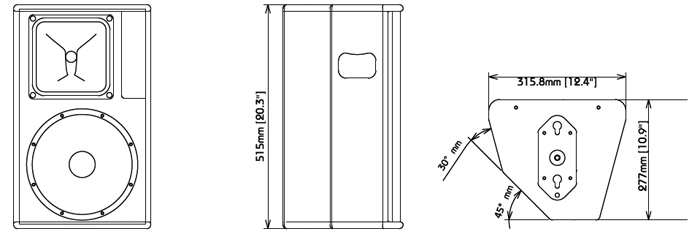

Type: 10 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 300W/600W Nominal Impedance: 8Ω Frequency Response: 60Hz-19kHz(±3dB) Sensitivity (1W/1M): 96dB Maximum SPL(1M): 123dB Coverage Patterns(H×V): 90°x50° LF Section: 10" (254mm) woofer, 2.5" (65mm) voice coil HF Section: 1.75"compression driver Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 316x277x515mm Packing Size(WxDxH): 375x335x580mm Net Weight: 13Kg Gross Weight: 16Kg |
|||
| 后面板 |
|||
 |
|||
|
