| PA12 12英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|

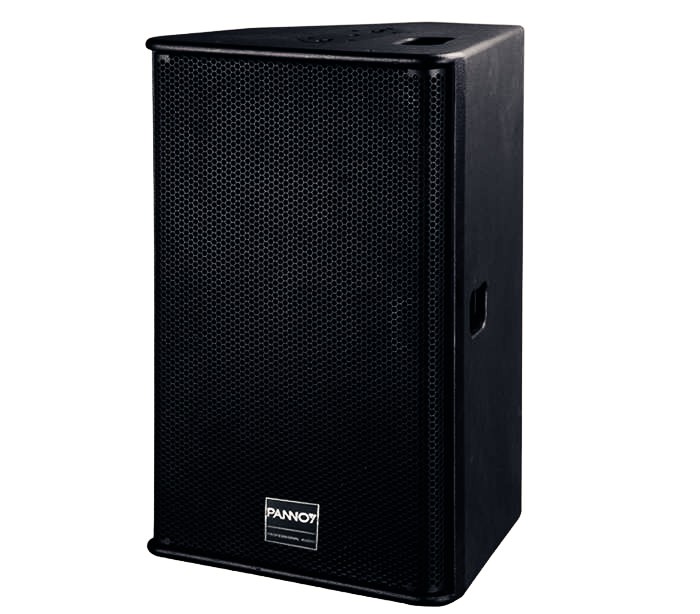

PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA12 is a two-way, full range loudspeaker system. It features one high efficient 12" woofer and one 1.75" compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, auditoriums, etc.
|
|||
| 产品参数
|
|||
|
Model: PA12

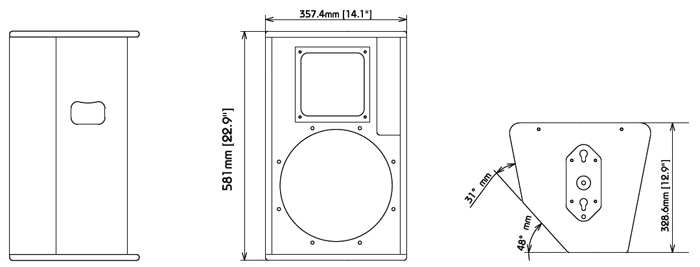

Type: 12 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 350W/700W Nominal Impedance: 8Ω Frequency Response: 55Hz-19kHz(±3dB) Sensitivity (1W/1M): 97dB Maximum SPL(1M): 125dB Coverage Patterns(H×V): 90°x50° LF Section: 12" (305mm) woofer, 2.5" (65mm) voice coil HF Section: 1.75"compression driver Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 358x329x581mm Packing Size(WxDxH): 430x390x660mm Net Weight: 21Kg Gross Weight: 24Kg |
|||
| 后面板 |
|||
 |
|||
|
