| PC15 15英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|

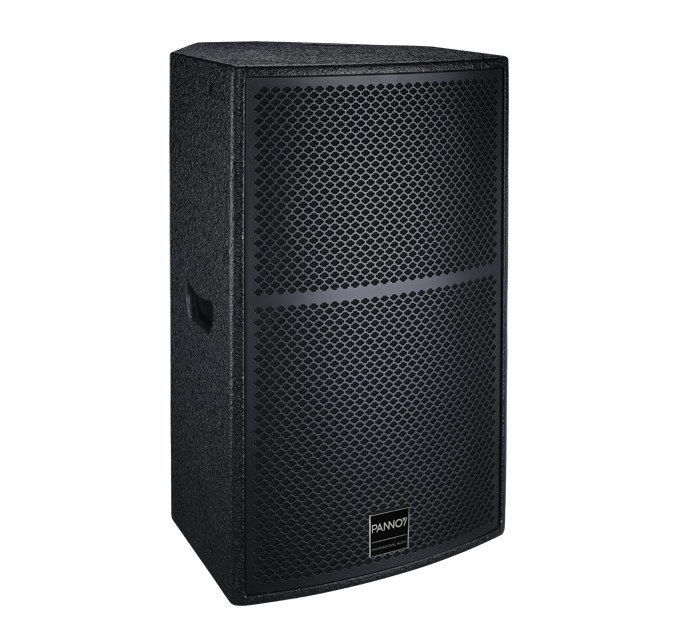

PC15 is a two-way, full range loudspeaker system. It features one high efficient 15”woofer and one 2.5＂titanium diaphragm compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, auditoriums, outdoor performance, etc.
|
|||
| 产品参数
|
|||
|
Model: PC15

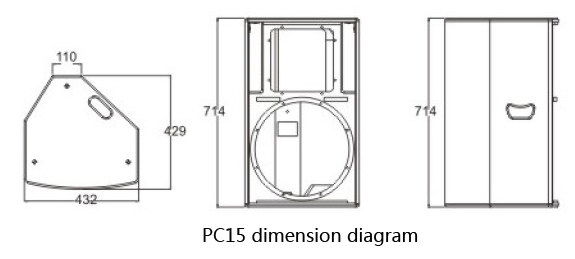

Type: 15 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 450W/900W Nominal Impedance: 8Ω Frequency Response: 50Hz-18kHz(±3dB) Sensitivity (1W/1M): 98dB Maximum SPL(1M): 126dB Coverage Patterns(H×V): 80°x50° LF Section: 15" (381mm) woofer, 3" (75mm) voice coil HF Section: 2.5"compression driver with 63mm titanium diaphragm Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 432x429x714mm Packing Size(WxDxH): 500x500x785mm Net Weight: 28Kg Gross Weight: 31Kg |
|||
| 后面板 |
|||
 |
|||
| 连接图 |
|||
 |
|||
|
