| PC215 双15英寸两分频全频专业音箱
|
|
| 产品描述
|
|||
|

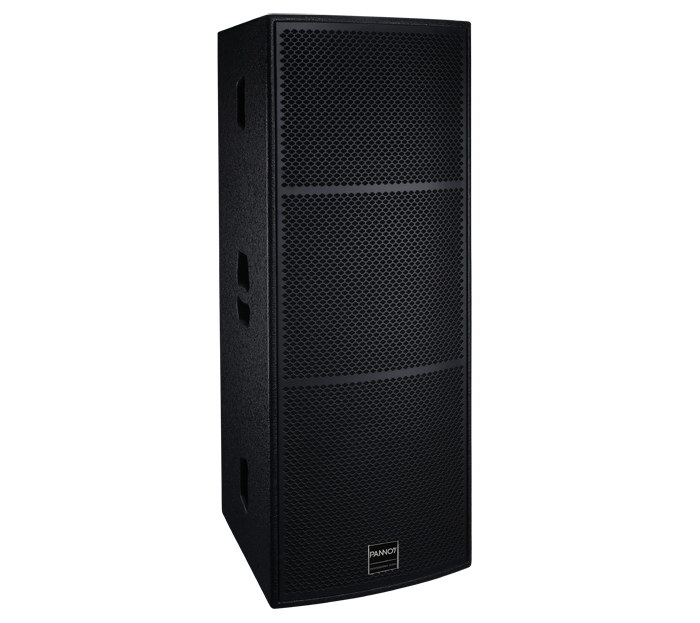

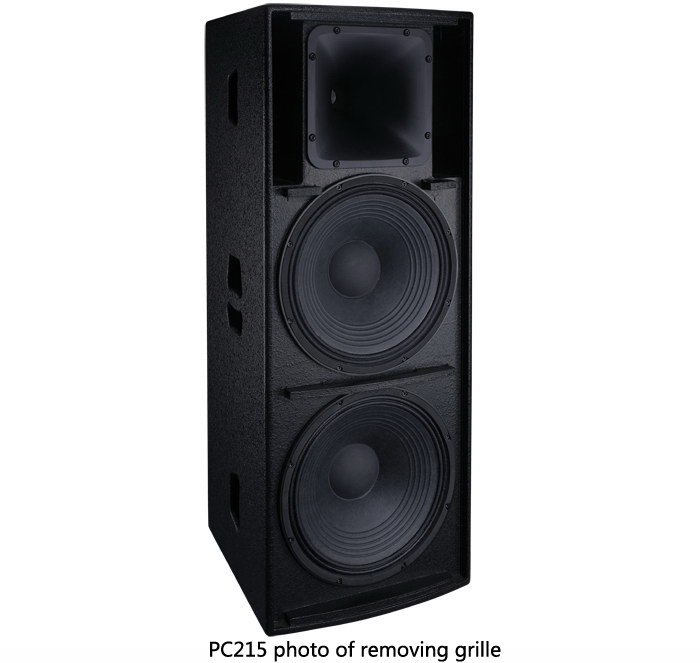

PC215 is a two-way, full range loudspeaker system. It features two high efficient 15”woofers and one 2.5”titanium diaphragm compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, auditoriums, outdoor performance, stadia and arenas, etc.
|
|||
| 产品参数
|
|||
|
Model: PC215

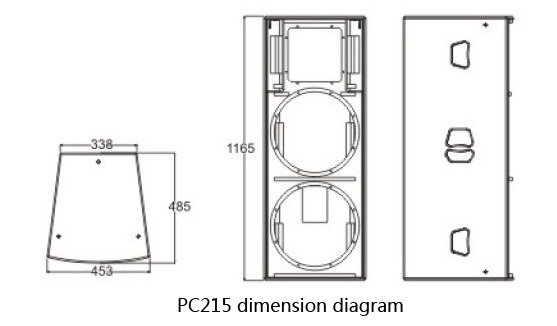

Type: Dual 15 inch Two Way Full Range Loudspeaker Power Handling(RMS/PEAK): 900W/1800W Nominal Impedance: 4Ω Frequency Response: 48Hz-18kHz(±3dB) Sensitivity (1W/1M): 101dB Maximum SPL(1M): 130dB Coverage Patterns(H×V): 80°x50° LF Section: 2x15" (381mm) woofer, 3" (75mm) voice coil HF Section: 2.5"compression driver with 63mm titanium diaphragm Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 453x485x1165mm Packing Size(WxDxH): 515x555x1235mm Net Weight: 44Kg Gross Weight: 47Kg |
|||
| 后面板 |
|||
 |
|||
| 连接图 |
|||
 |
|||
|
