| PC118S 单18英寸低频音箱
|
|
| 产品描述
|
|||
|

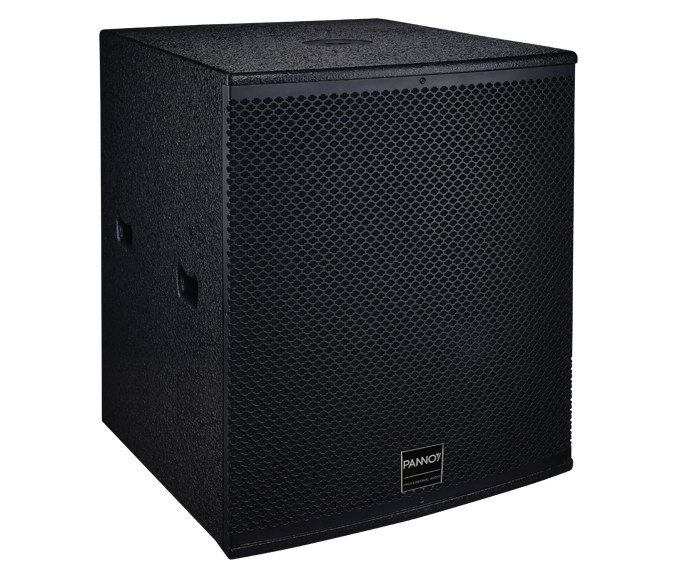

PC118S is a 18”subwoofer, specifically designed to reproduce very deep bass frequencies with maximum efficiency, speed and impact. It is intended to be used in the most demanding touring situations where extreme levels of bass are required. It is also ideal for reproducing the concentrated bass energy of contemporary dance music in disco,club environments.
|
|||
| 产品参数
|
|||
|
Model: PC118S
Type: 18 inch Subwoofer Power Handling(RMS/PEAK): 600W/1200W Nominal Impedance: 8Ω Frequency Response: 38Hz-500Hz(±3dB) Sensitivity (1W/1M): 103dB Maximum SPL(1M): 135dB LF Section: 18" (460mm) woofer, 4" (100mm) voice coil Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 530x780x650mm Packing Size(WxDxH): 600x870x720mm Net Weight: 47Kg Gross Weight: 51Kg |
|||
| 后面板 |
|||
 |
|||
| 连接图 |
|||
 |
|||
|
