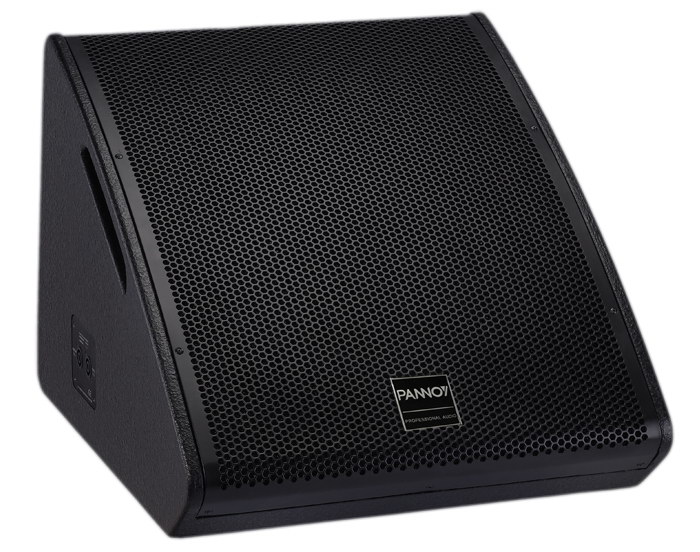

| PC15M 15英寸两分频全频监听音箱
|
|
| 产品描述
|
|||
|
PC15M is a two-way, full range stage monitor speaker system composed of one 15”woofer and one 1.75”titanium diaphragm compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications.
|
|||
| 产品参数
|
|||
|
Model: PC15M
Type: 15 inch Two Way Full Range Monitor Loudspeaker Power Handling(RMS/PEAK): 450W/900W Nominal Impedance: 8Ω Frequency Response: 50Hz-20kHz(±3dB) Sensitivity (1W/1M): 98dB Maximum SPL(1M): 126dB Coverage Patterns(H×V): 90°x60° LF Section: 15" (381mm) woofer, 3" (75mm) voice coil HF Section: 1.75"compression driver with 44mm titanium diaphragm Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 510x604x422mm Packing Size(WxDxH): 580x680x490mm Net Weight: 25Kg Gross Weight: 28Kg |
|||
| 后面板 |
|||
 |
|||
| 连接图 |
|||
 |
|||
|
