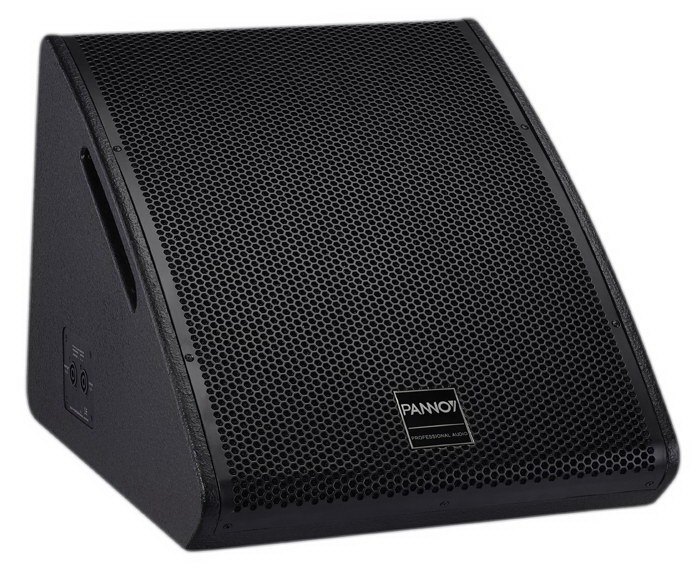

| PC12M 12英寸两分频全频监听音箱
|
|
| 产品描述
|
|||
|

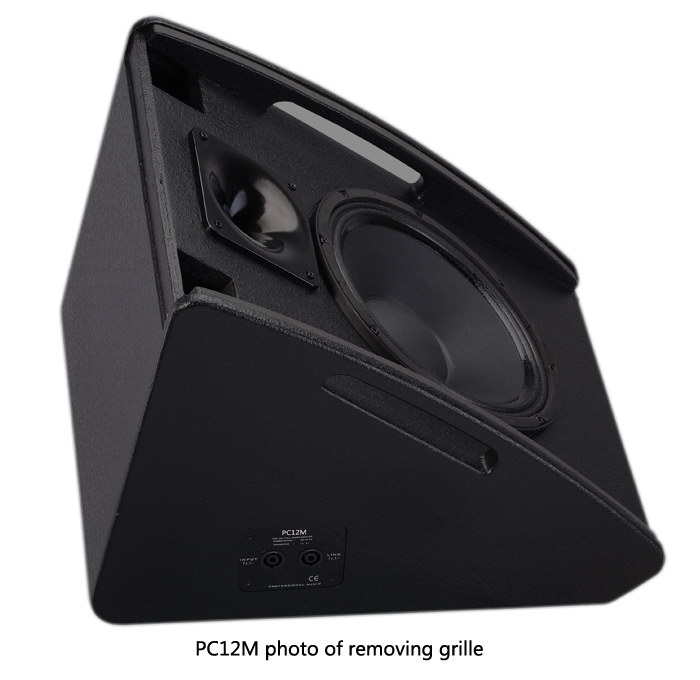

PC12M is a two-way, full range stage monitor speaker system composed of one 12”woofer and one 1.75＂ titanium diaphragm compression driver. It combines maximum internal enclosure volume with optimum presentation for near field stage monitor applications.
|
|||
| 产品参数
|
|||
|
Model: PC12M

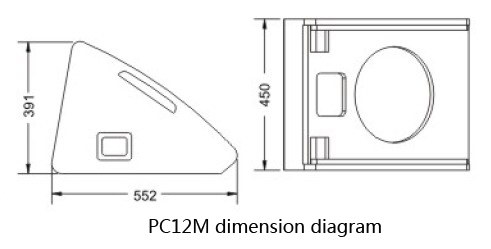

Type: 12 inch Two Way Full Range Monitor Loudspeaker Power Handling(RMS/PEAK): 350W/700W Nominal Impedance: 8Ω Frequency Response: 55Hz-20kHz(±3dB) Sensitivity (1W/1M): 97dB Maximum SPL(1M): 125dB Coverage Patterns(H×V): 90°x60° LF Section: 12" (305mm) woofer, 3" (75mm) voice coil HF Section: 1.75"compression driver with 44mm titanium diaphragm Input Connectors: 2xNL4MP Speakon Enclosure Material: Birch plywood Surface Finishing: Black paint Dimensions(WxDxH): 450x552x391mm Packing Size(WxDxH): 520x460x620mm Net Weight: 19Kg Gross Weight: 22Kg |
|||
| 后面板 |
|||
 |
|||
| 连接图 |
|||
 |
|||
|
